Vertical level sensor in AISI 316 with S3 threaded flange, 0–190 Ω, 25 cm

Mærke: Osculati SKU: 27.171.25

Price:
Sale price249,00 kr

Description

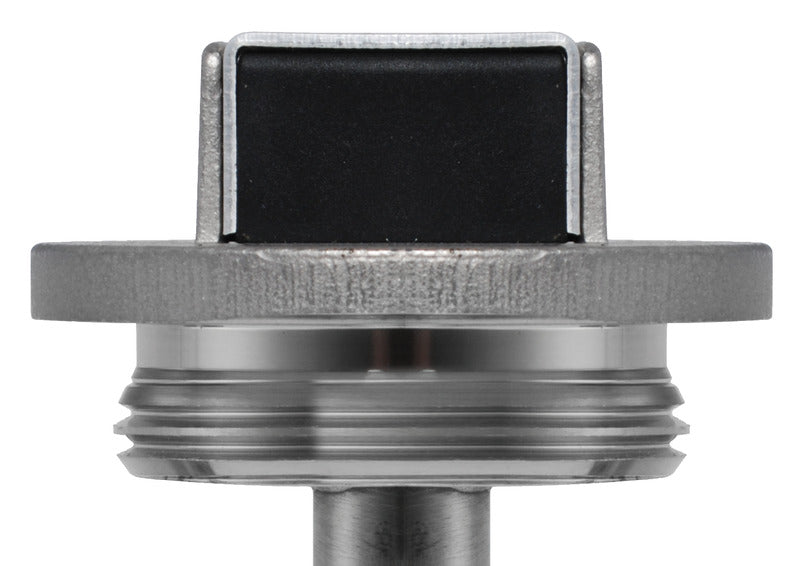

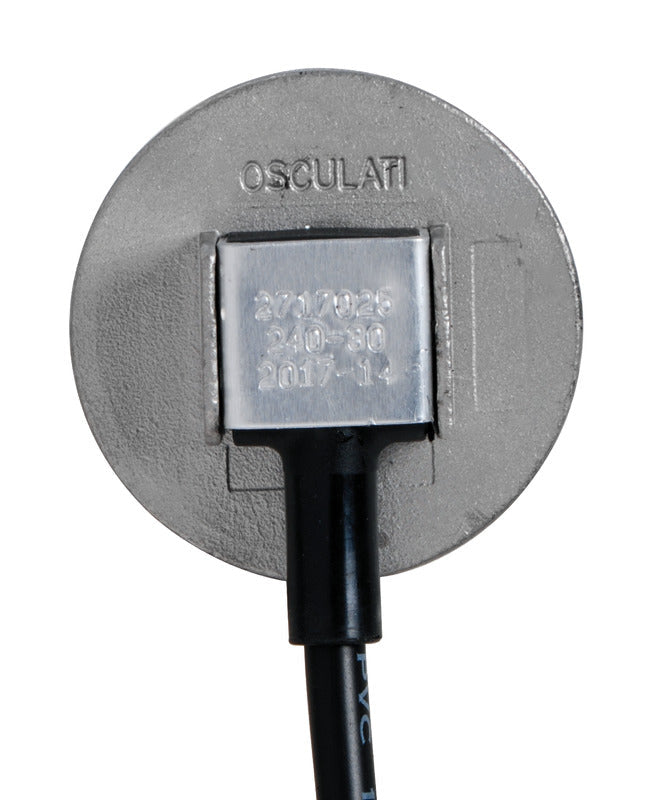

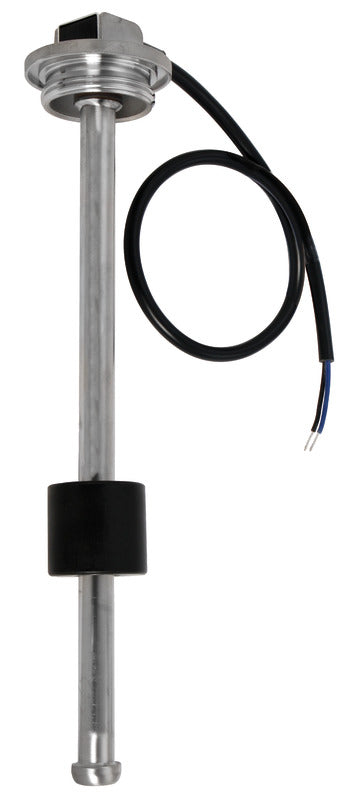

This Vertical level sensor in AISI 316 with S3 threaded flange is a 25 cm float-based tank sensor for measuring the level in fuel and water tanks. The sensor has an output resistance of 0–190 Ω and can be used in both 12 V and 24 V installations.

The magnetically actuated float moves along the sensor tube and changes the resistance in steps via the sensor's internal resistance network. The resistance is approximately 0 Ω with the float at the bottom and approximately 190 Ω with the float at the top. The rated power is 125 mW, the maximum operating current is 300 mA, and the resistance tolerance is ±(R × 1.5% + 1 Ω). The black wire is used for the signal, while the blue wire is common.

The sensor is made of AISI 316 stainless steel and has an IP65 protection rating as well as an operating temperature range from −40 °C to +85 °C. The flange/top diameter is Ø53.5 mm, the sensor tube measures Ø12.7 mm, and the float measures Ø35 × 32 mm. The connected cable is 460 ±20 mm long.

Mounting is performed using an S3 threaded connection and BSP 1¼″ external thread. Direct installation requires a tank flange or threaded socket with a corresponding internal thread. For flange mounting, a central hole of 50 mm/2″ is used. On plastic tanks, the flange is attached with a gasket and self-tapping screws, for which 4.0–4.2 mm drill holes are used. On suitable thin-walled metal tanks, the flange can be welded in place.

The resistance characteristic is compatible with three-wire Yazaki instruments as well as Faria Europe, VDO, Uflex, and Guardian instruments, provided the instrument is designed for the 0–190 Ω characteristic. The sensor must not be connected directly to an instrument for 240–33 Ω without suitable conversion.

The design meets ABYC H-24, USCG 33 CFR 183.590, and ISO 10088. It is also covered by 2014/30/EU with the standards EN 61326-1:2013, EN 61000-6:2007, and EN 61000-6:2007/A1:2011/AC:2012. For tanks with a five-hole S5 flange, the documented S5-to-S3 mounting flange with item no. 52.746.10 can be used.

Key features

25 cm vertical float sensor for diesel and water tanks
Output resistance: 0–190 Ω
Compatible with 12 V and 24 V systems
AISI 316 stainless steel
S3 connection with BSP 1¼″ external thread
Flange/top diameter: Ø53.5 mm
Cable length: 460 ±20 mm
Protection rating: IP65
Operating temperature: −40 °C to +85 °C
Meets ABYC H-24, USCG 33 CFR 183.590, and ISO 10088

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical level sensor in AISI 316 with S3 threaded flange, 0–190 Ω, 25 cm
Vertical level sensor in AISI 316 with S3 threaded flange, 0–190 Ω, 25 cm Item no. 27.171.25

Description

Produkt: Vertikal niveausensor i AISI 316 med S3-gevindflange
Serie: WATER+FUEL S3
Produkttype: Vertikal tankniveausensor
Anvendelse: Niveaumåling i diesel- og vandtanke
Volt: 12/24 V
Effekt: 125 mW
Ampere: Maks. 300 mA
Længde: 25 cm
Vægt: 232 g
Materiale: AISI 316 rustfrit stål
IP-klasse: IP65
Temperatur: −40 °C til +85 °C
Gevind: BSP 1¼″ udvendigt gevind
Kabellængde: 460 ±20 mm
Montering: S3-gevindtilslutning
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012
Certificering: 2014/30/EU
Kompatibilitet: Yazaki-modeller med 3 ledninger, Faria Europa, VDO, Uflex og Guardian til 0–190 Ω
Udgangsmodstand: 0–190 Ω
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Arbejdsmåde: Magnetisk, flyderaktiveret modstandssensor
Modstandsretning: Ca. 0 Ω med flyderen nederst og ca. 190 Ω med flyderen øverst
Flange-/topdiameter: Ø53,5 mm
Sensorrørsdiameter: Ø12,7 mm
Flyderdiameter: Ø35 mm
Flyderhøjde: 32 mm
Længdetolerance: ±5 mm
Centralt monteringshul: 50 mm/2″
Borediameter til plasttank: 4,0–4,2 mm
Ledningsfarver: Sort signal, blå fælles
Arbejdsmedium: Diesel og vand
