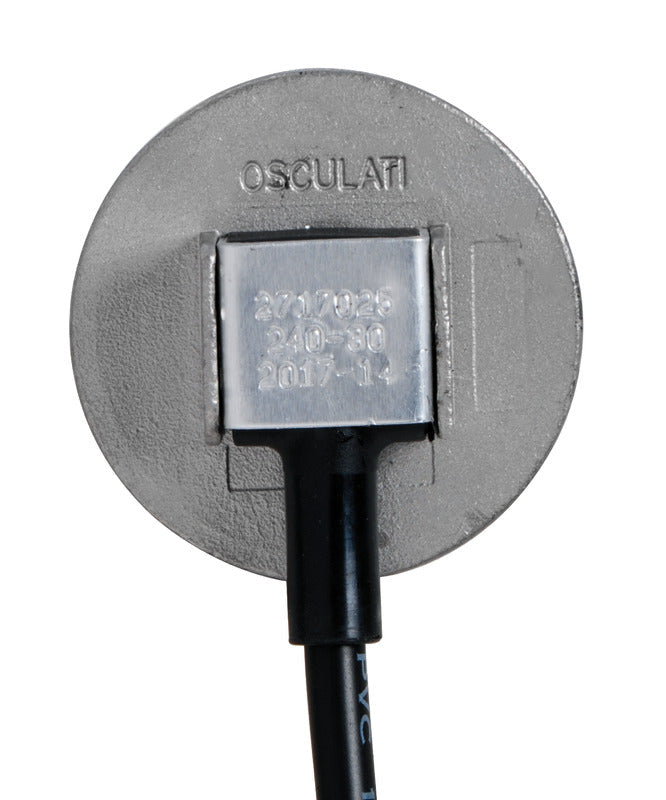

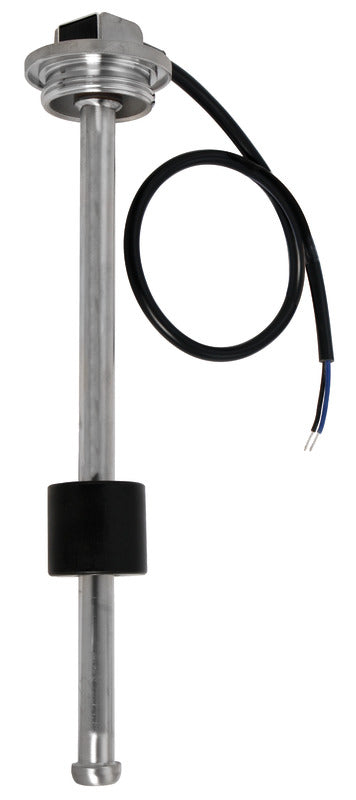

This vertical level sensor with S3 threaded flange in AISI 316 is a 45 cm tank sender for measuring the level in water and fuel tanks. The sensor provides a variable resistive signal of 0–190 Ω to a compatible tank level instrument.

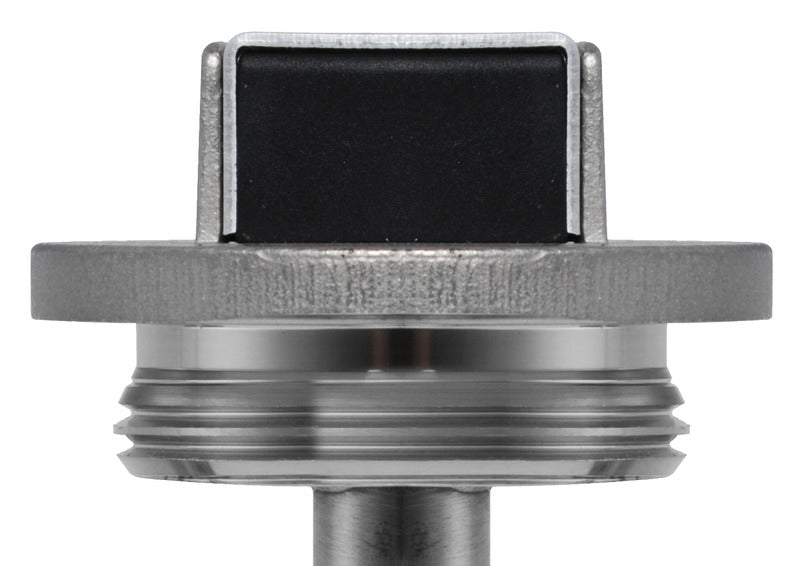

The sensor can be used in both 12 V and 24 V installations. It is designed for vertical mounting in the tank via an S3 type threaded flange, so the sensor length follows the depth of the tank at the mounting location.
The construction in AISI 316 stainless steel makes the sensor suitable for the documented measuring media of water and fuel. The variant has a sensor length of 45 cm and is part of the WATER+FUEL S3 series, where the length is the decisive variant parameter.
The signal range is compatible with relevant 0–190 Ω instruments. The series is documented for instruments from Yazaki in 3-wire design as well as Faria Europe, VDO, Uflex, and Guardian. Always check the instrument's required resistance characteristics before installation.
When mounting on a tank prepared for a 5-hole S5 flange, the adapter with item no. 52.746.10 can be used to convert from S5 to S3. The adapter is not required for standard S3 threaded mounting.
The sensor series meets the requirements of Directive 2014/30/EU and is covered by the standards EN 61326-1:2013, EN 61000-6:2007, and EN 61000-6:2007/A1:2011/AC:2012.
Important featuresFor level monitoring in water and fuel tanks
Resistive signal range: 0–190 Ω
Sensor length: 45 cm
Compatible with 12 V and 24 V systems
Made of AISI 316 stainless steel
Vertical mounting via S3 threaded flange
Compatible with documented 0–190 Ω tank instruments
Compliance with Directive 2014/30/EU
