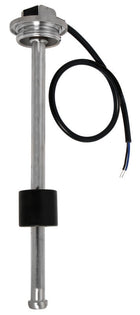

Vertical S3 level sensor in AISI 316, 240–33 Ω, 50 cm

Mærke: Osculati SKU: 27.170.50

Price:
Sale price317,00 kr

Description

This vertical S3 level sensor in AISI 316 with a 240–33 Ω signal range is intended for measuring fluid levels in water and fuel tanks. The variant has a nominal sensor length of 50 cm and is compatible with 12/24 V electrical systems.

The sensor operates with a float around the vertical sensor tube and sends a resistance signal of 240–33 Ω to a compatible tank gauge. The resistance output has a tolerance of ±(R × 1.5% + 1 Ω). The electrical connection is made with two wires, where black is signal and blue is common/shared reference. The cable length is 460 ±20 mm.

The construction is made of AISI 316 stainless steel. The sensor head and flange have a maximum diameter of Ø53.5 mm, the sensor tube measures Ø12.7 mm, and the float measures Ø35 × 32 mm. The nominal measuring height is 500 mm with an allowable deviation of ±5 mm.

The sensor is mounted vertically through the top of the tank via an S3 threaded flange with BSP 1 1/4" male thread. For installation in a tank with an international 5-hole S5 flange, adapter flange item no. 52.746.10 can be used. Adapter, threaded flange, gaskets, and mounting parts are not documented as part of the scope of delivery.

The signal range is compatible with instruments that require 240–33 Ω, including relevant instruments from Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom, and Taiwan-Wena. The instruments with item no. 27.170.00 and 27.160.00 also have the relevant signal range. Always check the instrument's resistance range and the tank's mounting conditions before installation.

The sensor has an IP65 protection rating, an operating temperature from −40 °C to +85 °C, a nominal power of 125 mW, and a maximum operating current of 300 mA. The product family meets ABYC H-24, USCG 33 CFR 183.590, and ISO 10088 as well as EMC Directive 2014/30/EU with EN 61326-1:2013 and EN 61000-6:2007 including relevant amendments.

Key features

For water and fuel tanks
Signal range: 240–33 Ω
Compatible with 12/24 V systems
Nominal sensor length: 50 cm
AISI 316 stainless steel
BSP 1 1/4" male S3 thread
Cable length: 460 ±20 mm
Protection rating: IP65
Operating temperature: −40 °C to +85 °C
Vertical mounting through tank top

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical S3 level sensor in AISI 316, 240–33 Ω, 50 cm
Vertical S3 level sensor in AISI 316, 240–33 Ω, 50 cm Item no. 27.170.50

Description

Produkt: Vertikal S3-niveausensor med gevindflange
Serie: S3
Produkttype: Tankniveausensor
Anvendelse: Niveaumåling i tanke til vand og brændstof
Volt: 12/24 V
Effekt: 125 mW
Ampere: Maks. 300 mA
Længde: 50 cm
Diameter over sensorhoved/flange: Ø53,5 mm
Sensorrørets diameter: Ø12,7 mm
Svømmermål: Ø35 × 32 mm
Materiale: AISI 316 rustfrit stål
IP-klasse: IP65
Temperatur: −40 °C til +85 °C
Gevind: BSP 1 1/4" udvendigt gevind
Kabellængde: 460 ±20 mm
Montering: Lodret gennem tanktop via S3-gevindflange
Signalområde: 240–33 Ω
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Tilladt afvigelse for målehøjde: ±5 mm
Ledningsfarver: Sort = signal; blå = common/fælles
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012
Certificering: EMC-direktiv 2014/30/EU
Teknisk reference: QC/T413-2002
Kompatibilitet: 240–33 Ω-instrumenter fra Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom og Taiwan-Wena samt instrumenter 27.170.00 og 27.160.00
Vægt: 248 g
