Vertical tank level sensor in AISI 316 with S3 thread, 0–190 Ω, 60 cm

Mærke: Osculati SKU: 27.171.60

Price:
Sale price446,00 kr

Description

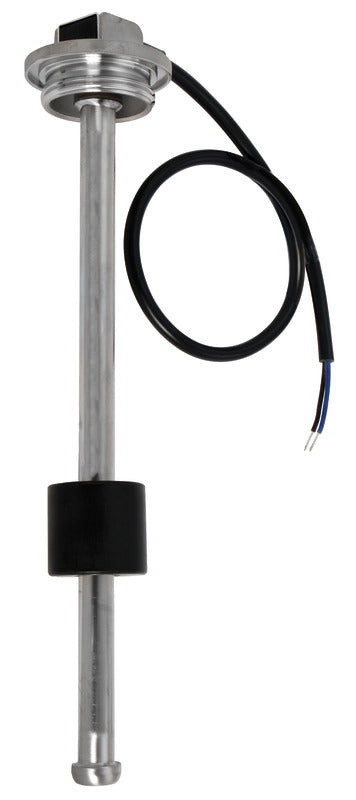

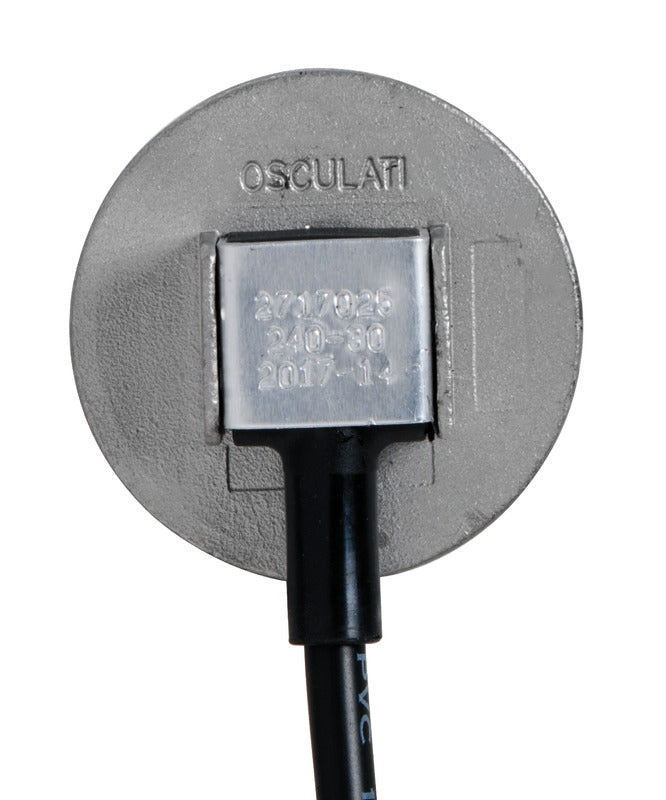

This vertical tank level sensor in AISI 316 with S3 thread, 0–190 Ω has a nominal sensor length of 60 cm and is intended for measuring the level in fuel and water tanks. The sensor is compatible with 12/24 V instrument systems and delivers a resistive signal to a separate tank instrument.

The level is detected by a moving float, which follows the liquid level along the vertical sensor tube. The movement changes the sensor's resistance signal within the range of 0–190 Ω. The sensor can be used with instruments with the correct resistance characteristics, including compatible instrument types from Yazaki, Faria Europa, VDO, Uflex, and Guardian, as well as relevant 3-wire instruments.

The construction is made of AISI 316 stainless steel and has an IP65 protection rating. The sensor tube has a diameter of 12.7 mm, the float measures 35 mm in diameter and 32 mm in height, while the head has a diameter of 53.5 mm. The operating temperature is from −40 °C to +85 °C.

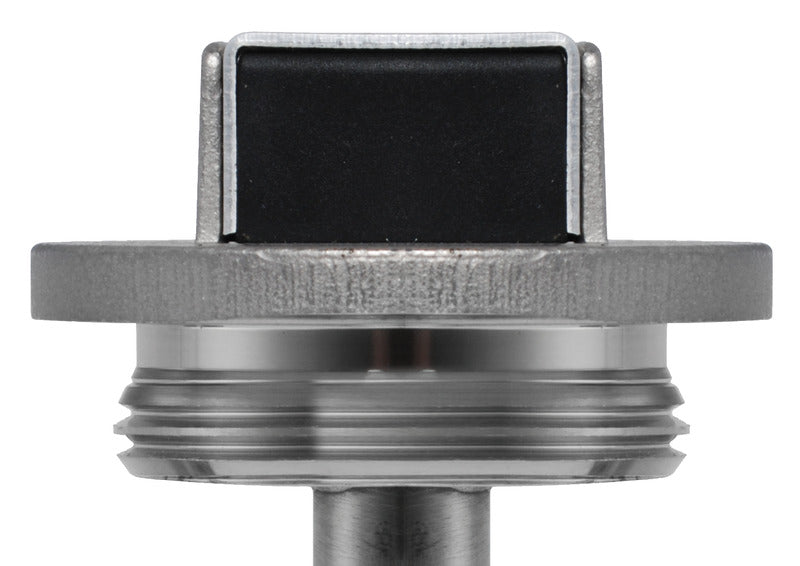

The sensor is mounted vertically in the tank via an S3 threaded flange with 1 1/4" BSP thread. The electrical connection is made with a 460 ±20 mm cable, where the black lead is the signal and the blue lead is common. The nominal power is 125 mW, and the maximum operating current is 300 mA.

For tanks with a five-hole S5 flange, an adapter flange with part no. 52.746.10 can be used for transition to S3. During installation, the tank connection must match the sensor's thread and length, and the connected instrument must be designed for a 0–190 Ω signal.

The sensor family meets ABYC H-24, USCG 33 CFR 183.590, and ISO 10088, as well as the EMC requirements of Directive 2014/30/EU and the specified EN standards.

Key features

For fuel and water tanks
Resistance signal: 0–190 Ω
Nominal sensor length: 60 cm
12/24 V compatible
AISI 316 stainless steel
S3 flange with 1 1/4" BSP thread
IP65 and operating temperature from −40 °C to +85 °C
Cable length: 460 ±20 mm

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical tank level sensor in AISI 316 with S3 thread, 0–190 Ω, 60 cm
Vertical tank level sensor in AISI 316 with S3 thread, 0–190 Ω, 60 cm Item no. 27.171.60

Description

Produkt: Vertikal tankniveausensor i AISI 316 med S3-gevind, 0–190 Ω
Serie: S3
Produkttype: Resistiv svømmerniveausensor til brændstof- og vandtanke
Anvendelse: Niveaumåling i brændstof- og vandtanke
Volt: 12/24 V
Effekt: 125 mW
Længde: 60 cm
Materiale: AISI 316 rustfrit stål
IP-klasse: IP65
Temperatur: −40 °C til +85 °C
Gevind: BSP 1 1/4"
Kabellængde: 460 ±20 mm
Montering: Vertikal tankmontering med S3-gevindflange
Standard: ABYC H-24, USCG 33 CFR 183.590, ISO 10088, EN 61326-1:2013, EN 61000-6:2007 og EN 61000-6:2007/A1:2011/AC:2012
Certificering: EMC-overensstemmelse iht. 2014/30/EU
Kompatibilitet: Brændstof- og vandtanke samt instrumenter beregnet til 0–190 Ω; kompatible instrumenttyper omfatter Yazaki, Faria Europa, VDO, Uflex, Guardian og relevante 3-lederinstrumenter
Modstandssignal: 0–190 Ω
Maks. arbejdsstrøm: 300 mA
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Længdetolerance: ±5 mm
Topdiameter: 53,5 mm
Sensorrørsdiameter: 12,7 mm
Svømmerdiameter: 35 mm
Svømmerhøjde: 32 mm
Ledere: Sort = signal; blå = fælles
O-ringsmateriale: NBR
