Vertical tank level sensor in AISI 316 with S3 threaded flange, 0–190 Ω, 20 cm

Mærke: Osculati SKU: 27.171.20

Price:
Sale price228,00 kr

Description

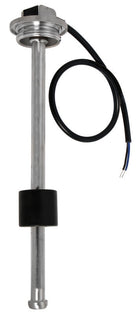

Vertical tank level sensor in AISI 316 with S3 threaded flange for measuring the level in fuel and water tanks. This variant has a sensor length of 20 cm and a nominal resistance range of 0–190 Ω.

The sensor operates on a resistive measuring principle. A moving float follows the liquid level along the vertical sensor tube, whereby the resistance value changes and is transmitted to a compatible analog level instrument. The sensor is compatible with 12/24 V instrument systems and has a rated power of 125 mW as well as a maximum operating current of 300 mA.

The construction is made of AISI 316 stainless steel and has NBR O-rings for sealing. The sensor tube measures Ø12.7 mm, while the float is Ø35 mm and 32 mm high. The head diameter is Ø53.5 mm. The 2-wire cable is 460 ±20 mm long, with a black conductor for signal and a blue conductor for common connection.

The sensor is mounted via an S3 threaded flange with an external 1 1/4" BSP thread. Direct mounting requires a suitable S3 connection in the tank. For tanks with an international S5 five-hole flange, adapter flange part no. 52.746.10 can be used. During installation, the tank type, flange, seal, and mounting method must always be checked.

The resistance range is compatible with relevant instruments from Yazaki, including the three-wire model, as well as Faria Europa, VDO, Uflex, and Guardian. The sensor itself has two electrical conductors. The enclosure rating is IP65, and the documented operating temperature range is from −40 °C to +85 °C.

The sensor family complies with ABYC H-24, USCG 33 CFR 183.590, and ISO 10088. It is also CE marked according to EU Directive 2014/30/EU with relevant standard references EN 61326-1:2013 and EN 61000-6:2007 with amendments.

Important features

For fuel and water tanks
Sensor length: 20 cm
Resistance range: 0–190 Ω
Compatible with 12/24 V instrument systems
AISI 316 stainless steel
S3 threaded flange with 1 1/4" BSP external thread
2-wire cable of 460 ±20 mm
Enclosure rating: IP65
Operating temperature: −40 °C to +85 °C
CE marked
