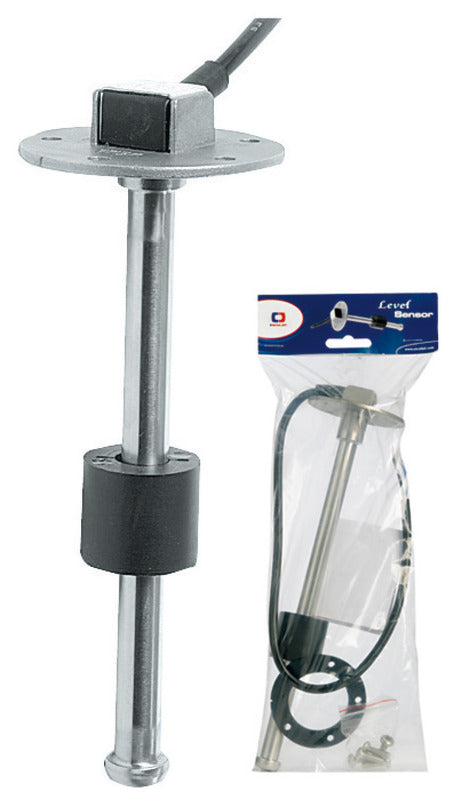

This vertical tank level sensor in AISI 316 stainless steel with S5 5-hole flange has a sensor length of 90 cm and is designed for measuring liquid levels in fuel and water tanks. The sensor uses a 0–190 Ω resistive signal and can be used in 12/24 V systems.

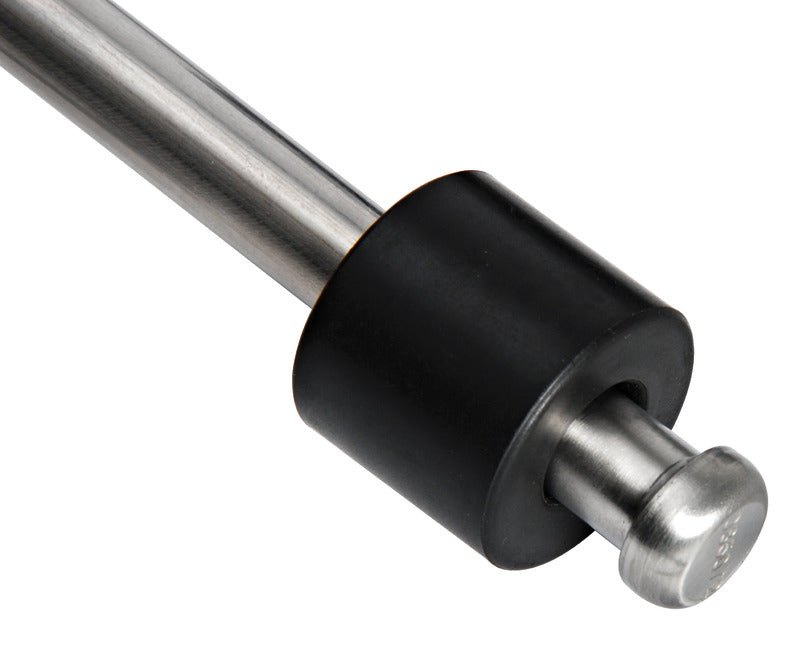

The passive level transmitter works using a float that follows the liquid level and changes the sensor's resistance signal. The sensor must be connected to a tank gauge or an instrument input designed for the 0–190 Ω signal range.

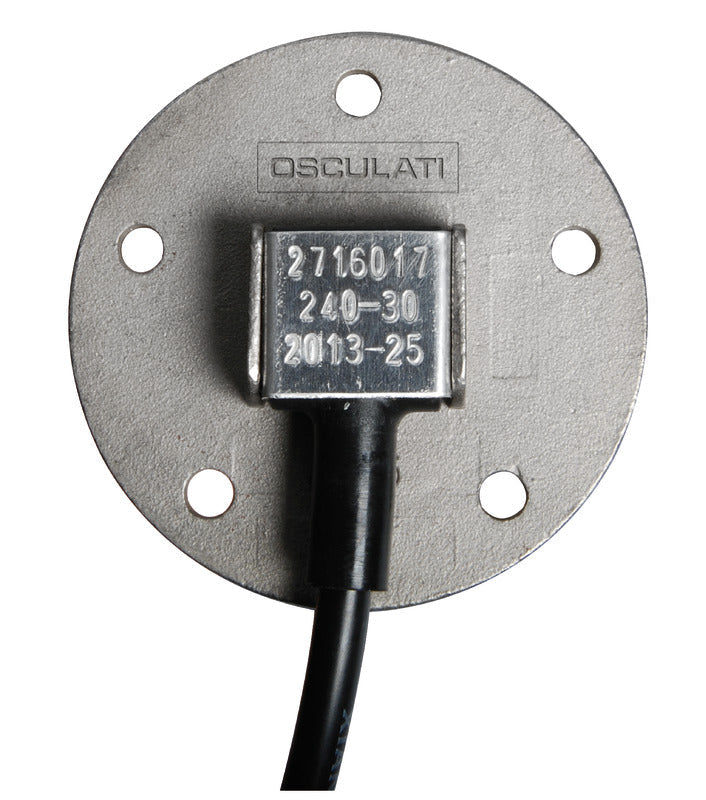

The construction is made of AISI 316 stainless steel and is intended for vertical mounting. The S5 flange has five mounting holes, and the flange/mounting dimension is specified as 69/38 mm. The approximately 30 cm long two-wire cable can be extended during installation.
The sensor is electrically compatible with three-wire Yazaki instruments as well as instruments from Faria Europa, VDO, Uflex, and Guardian, provided the instrument is designed for the relevant European resistance signal. Check the tank depth, flange design, and the instrument's signal range before installation.
The product family complies with Directive 2014/30/EU and the standards EN 61326-1:2013, EN 61000-6:2007, and EN 61000-6:2007/A1:2011/AC:2012. It is also covered by the RoHS Directive (EU) 2015/863. Other sensor lengths can be supplied on request with a minimum order of 20 units.
Key featuresFor fuel and water tanks
Resistive signal: 0–190 Ω
Universal for 12/24 V systems
Sensor length: 90 cm
AISI 316 stainless steel
Vertical mounting with S5 5-hole flange
Flange/mounting dimension: 69/38 mm
Approx. 30 cm two-wire cable, which can be extended
Compatible with relevant Yazaki, Faria Europa, VDO, Uflex, and Guardian instruments
