Stainless steel 316 vertical tank level sensor, 240–33 Ω, 63 cm

Mærke: Osculati SKU: 27.160.63

Price:
Sale price311,00 kr

Description

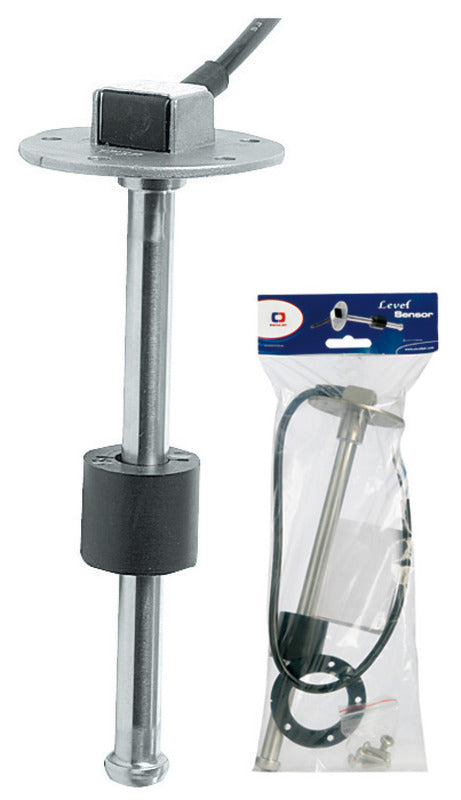

This vertical 316 stainless steel tank level sensor is a resistive S5-A sensor with a moving float for measuring levels in fuel and water tanks. The variant has a nominal sensor length of 63 cm and provides a 240–33 Ω signal to a compatible level instrument.

The sensor can be used in both 12 and 24 V systems. The float moves along the vertical sensor tube and changes the sensor's resistance according to the liquid level. The nominal power rating is 125 mW, and the maximum operating current is 300 mA. The connection consists of two conductors, and the cable measures 460 ±20 mm.

The sensor and sensor tube are made of 316 stainless steel. The sensor tube has an outer diameter of 12.7 mm, while the included gasket is made of NBR. The design features an IP65 protection rating and a documented operating temperature range from −40 °C to +85 °C.

Mounting is performed with an S5 flange and five screws. The flange has an outer diameter of 69 mm, a bolt circle of 54 ±0.25 mm, and five 5.5 mm mounting holes. Installation requires a central tank hole of 40 mm as well as five screw holes drilled with a 4.0–4.2 mm drill bit. The asymmetrical hole pattern means that the sensor and gasket must be oriented correctly.

When mounting, the gasket is used as a drilling template. The sensor's cable orientation must align with the gasket's cutout, and the screws should be tightened in a star pattern to achieve an even seal. One conductor is connected to the instrument's sensor input and the other to common minus or ground; the connection should be checked against the manual for the level instrument used.

The sensor is intended for instruments or tank inputs that support a 240–33 Ω resistive sensor signal. The product family complies with the RoHS directive (EU) 2015/863.

Key features

Vertical resistive tank level sensor with moving float
For fuel and water tanks
Signal range: 240–33 Ω
Universal for 12/24 V systems
Nominal sensor length: 63 cm
316 stainless steel and NBR gasket
S5 flange with five mounting holes
Protection rating: IP65
Operating temperature: −40 °C to +85 °C
Cable length: 460 ±20 mm

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Stainless steel 316 vertical tank level sensor, 240–33 Ω, 63 cm
Stainless steel 316 vertical tank level sensor, 240–33 Ω, 63 cm Item no. 27.160.63

Description

Produkt: Vertikal tankniveausensor i rustfrit stål 316
Serie: S5 / S5-A
Model: S5-A
Produkttype: Resistiv niveau-/tankmåler med flyder
Anvendelse: Niveaumåling i brændstof- og vandtanke
Volt: 12/24 V
Effekt: 125 mW
Ampere: Maks. 300 mA
Længde: 630 mm, tolerance ±2 mm
Udvendig diameter: Sensorrør Ø12,7 mm
Materiale: Rustfrit stål 316
IP-klasse: IP65
Temperatur: −40 °C til +85 °C
Kabellængde: 460 ±20 mm
Montering: S5-flange med 5 huller
Standard: RoHS-direktiv (EU) 2015/863
Certificering: RoHS-overensstemmelse
Signalområde: 240–33 Ω
Udgangstolerance: ±(1 + R × 1,5 %) Ω
Elektrisk tilslutning: 2 ledere
Pakningsmateriale: NBR
Flangediameter: Ø69 mm
Boltcirkel: Ø54 ±0,25 mm
Monteringshuller: Ø5,5 mm
Flangetykkelse: 3 mm
Tankudskæring: Ø40 mm
Borediameter til skruehuller: 4,0–4,2 mm
Fastgørelse: 5 skruer, M5 × 13 mm
Kompatibilitet: Brændstof- og vandtanke samt niveauinstrumenter med 240–33 Ω sensorindgang
