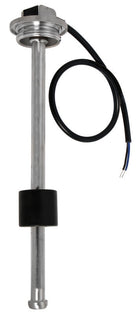

This vertical tank level sensor with S3 threaded flange in AISI 316 is an electrical tank sender for measuring liquid levels in fuel and water tanks. The variant has a nominal sensor length of 30 cm and a resistance range of 0–190 Ω.
The sensor is compatible with 12 and 24 V electrical installations. The 0–190 Ω resistance characteristic is intended for compatible level instruments from Yazaki in 3-wire configuration, Faria Europa, VDO, Uflex, and Guardian. The instrument's resistance range must match that of the sensor to ensure correct level indication.
The construction is made of AISI 316 stainless steel and is intended for use with both fuel and water. The vertical design is mounted via an S3 threaded flange. The exact thread diameter and thread standard are not specified.
When installing in a tank prepared for a five-hole S5 flange, the mounting adapter from S5 to S3 with item no. 52.746.10 can be used. The adapter is not necessary when the tank already has a suitable S3 connection.
The sensor series is compliant with EMC Directive 2014/30/EU as well as the standards EN 61326-1:2013, EN 61000-6:2007, and EN 61000-6:2007/A1:2011/AC:2012.
Key featuresFor fuel and water tanks
Resistance range: 0–190 Ω
Nominal sensor length: 30 cm
Compatible with 12/24 V installations
Made of AISI 316 stainless steel
Vertical mounting with S3 threaded flange
Compatible with relevant instruments from Yazaki, Faria Europa, VDO, Uflex, and Guardian
Compliance with 2014/30/EU on electromagnetic compatibility
