Vertical tank level sensor with S3 threaded flange in AISI 316, 240–33 Ω, 30 cm

Mærke: Osculati SKU: 27.170.30

Price:
Sale price249,00 kr

Description

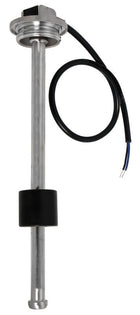

Vertical tank level sensor with S3 threaded flange in AISI 316, 240–33 Ω in 30 cm version is intended for measuring liquid levels in fuel and water tanks. The sensor features a vertical rod with a ring-shaped float and provides a resistive signal to a compatible level instrument.

The float moves along the sensor tube, changing the resistance from approximately 240 Ω at an empty or low position to approximately 33 Ω at a full or high position. The sensor is compatible with 12 and 24 V systems, has a power rating of 125 mW, and a maximum operating current of 300 mA. The black wire is used for the signal, while the blue wire is the common connection.

The sensor is made of AISI 316 stainless steel and has a nominal sensor length of 300 mm with a tolerance of ±5 mm. The sensor head measures Ø53.5 mm, the sensor tube Ø12.7 mm, and the float has an outer diameter of Ø35 mm and a height of 32 mm. The integrated cable is 460 ±20 mm long.

Mounting is performed vertically through the S3 interface with BSP 1 1/4" male thread. The S3 system can be mounted in metal and plastic tanks with a separate suitable mounting flange. When using this mounting method, a 50 mm center hole is used; the flange, gasket, and screws are not documented as part of the delivery.

The electrical 240–33 Ω signal is compatible with level instruments with a corresponding input, including instrument types from Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, and Datcom. The instruments with part nos. 27.170.00 and 27.160.00 are documented 240–33 Ω alternatives. The adapter with part no. 52.746.10 can be used for mounting on tanks with an S5 hole pattern.

The sensor has an IP65 protection rating and a documented operating temperature range from -40 °C to +85 °C. The construction meets ABYC H-24, USCG 33 CFR 183.590, and ISO 10088, as well as the EMC Directive 2014/30/EU and the specified EN standards.

Key features

For fuel and water tanks
Resistive output signal of 240–33 Ω
Compatible with 12/24 V systems
Nominal sensor length of 30 cm
AISI 316 stainless steel
S3 interface with BSP 1 1/4" male thread
IP65 protection rating
Operating temperature from -40 °C to +85 °C
Cable length of 460 ±20 mm

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical tank level sensor with S3 threaded flange in AISI 316, 240–33 Ω, 30 cm
Vertical tank level sensor with S3 threaded flange in AISI 316, 240–33 Ω, 30 cm Item no. 27.170.30

Description

Produkt: Vertikal tankniveausensor
Serie: WATER+FUEL S3
Produkttype: Resistiv tankniveaugeber med flyder
Anvendelse: Brændstof- og vandtanke
Volt: 12/24 V
Effekt: 125 mW
Ampere: Maks. 300 mA
Længde: 30 cm
Længdetolerance: ±5 mm
Udvendig diameter: Ø53,5 mm (sensorhoved/flange)
Sonderørets diameter: Ø12,7 mm
Flyderdiameter: Ø35 mm
Flyderhøjde: 32 mm
Materiale: AISI 316 rustfrit stål
IP-klasse: IP65
Temperatur: -40 °C til +85 °C
Gevind: BSP 1 1/4" udvendigt
Modstand: 240–33 Ω
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Kabellængde: 460 ±20 mm
Ledningsfarver: Sort signal, blå fælles
Montering: Lodret via S3-gevindflange
Monteringshul: 50 mm ved separat S3-monteringsflange
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012; QC/T413-2002
Certificering: Overensstemmelse med EMC-direktiv 2014/30/EU
Kompatibilitet: Niveauinstrumenter med 240–33 Ω indgang
Vægt: 242 g
