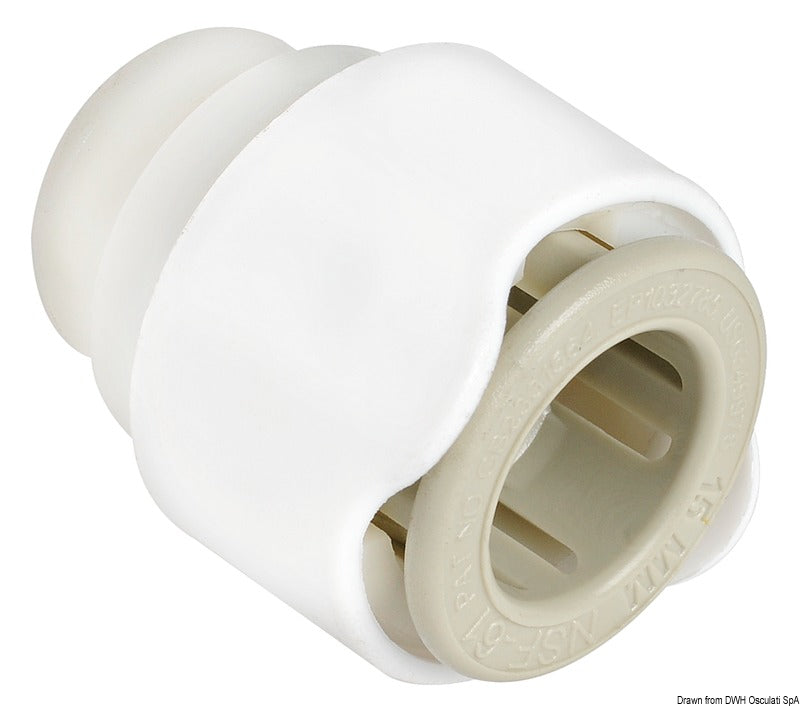

Whale Quick Connect 15 mm plug

Mærke: Whale SKU: 17.815.46

Price:
Sale price44,74 kr

Description

Whale Quick Connect 15 mm end stop seals the end of a 15 mm pipe in the Whale Quick Connect system. It is intended for hot and cold water installations and can be used for the permanent or temporary termination of a pipeline during installation, modification, service, or repair.

The end stop is installed using the system's push-fit connection without soldering, glue, or special tools. The Double Gripper design secures the pipe, while an internal support ring keeps the O-ring in place. An outer sleeve protects the release collar and reduces the risk of the pipe being released accidentally. No separate locking clips are required.

The connection is intended for 15 mm pipes with a 15 mm outside diameter. It withstands a maximum of 12 bar at 20 °C in cold water installations and 6 bar at 65 °C in hot water installations. The construction is made of plastic and provides a corrosion-free, tight, and reusable connection.

For installation, the pipe is cut clean and perpendicular, after which it is pushed into the end stop to the second internal stop. For disassembly, the gray release collar is pressed in towards the fitting while the pipe is pulled out. The component can then be reused.

The end stop must be used together with Whale Quick Connect 15 mm plastic pipes and the system's grooved Whale stems. It is suitable for, among other things, the color-coded blue cold water pipes and red hot water pipes. The manufacturer number is WX1546B, which replaces the previous reference WX1546.

Compatible 15 mm pipes include blue cold water pipe with item no. 17.815.52 and red hot water pipe with item no. 17.815.54. For correct perpendicular cutting of semi-rigid pipes, the Whale pipe cutter WX7950 can be used.

Key features

End stop for Whale Quick Connect 15 mm pipe system
Seals the end of a 15 mm hot or cold water pipe
Push-fit installation without soldering, glue, or special tools
O-ring based seal with internal support ring
Max. 12 bar at 20 °C
Max. 6 bar at 65 °C
Can be disassembled and reused
Manufacturer number WX1546B

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Whale Quick Connect 15 mm plug
Whale Quick Connect 15 mm plug Item no. 17.815.46

Description

Produkt: Whale Quick Connect 15 mm endeprop
Mærke: Whale
Producent: Munster Simms Engineering Limited
Serie: Quick Connect
Model: WX1546B
Produkttype: Endeprop
Anvendelse: Afslutning af 15 mm varmt- og koldtvandsrør
Materiale: Plast
Maks. tryk: 12 bar ved 20 °C; 6 bar ved 65 °C
Temperatur: 20 °C ved 12 bar; 65 °C ved 6 bar
Tilslutning: 15 mm Whale Quick Connect hun-/push-fit-tilslutning
Tilslutningsdimension: 15 mm rør med 15 mm udvendig diameter
Montering: Push-fit uden specialværktøj
Tætning: O-ring med indvendig støttering
OEM: WX1546B; WX1546
Kompatibilitet: Whale Quick Connect 15 mm plastrør og rillede Whale-stems
