Zipwake KBI400-E PRO - Kit Box for integration (400 mm PRO)

Mærke: Zipwake SKU: 2022270

Price:
Sale price40.256,25 kr

Description

Zipwake KBI400-E PRO is a complete trim and stabilization system for boats where you want professional Zipwake stabilization with the option of integration into external systems. The kit is based on a pair of 400 mm Series E PRO interceptors and provides fast, precise, and automatic trim control while underway.

The PRO version operates on 36 V DC and has a blade rate of 100 mm/s, providing a significantly faster response than the standard Series E. This makes the system particularly well-suited for boats with higher demands for stabilization and reaction time.

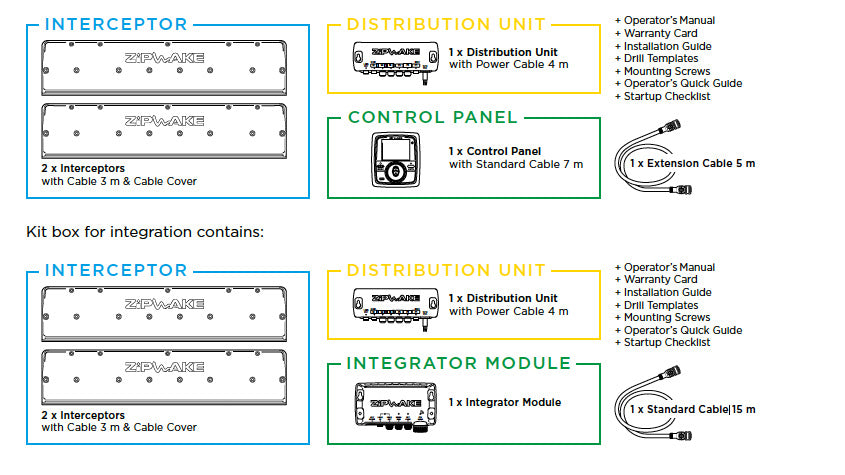

Included in the box

  • 2x IT400-E PRO - 400 mm interceptors with cables and cable covers
  • CP PRO Control Panel - With 7 m cable
  • DU PRO Distribution Unit - With power cable (6 m, 12 AWG) and 10 A ATO fuse
  • IM Integrator Module - For system integration
  • Cables and accessories - Mounting and installation parts

System specifications

  • Interceptor length: 400 mm
  • Blade rate: 100 mm/s - approx. 2.5x faster response than standard Series E
  • Servo type: SU-400E PRO (single-servo)
  • Operating voltage: 36 V DC

Installation and expansion

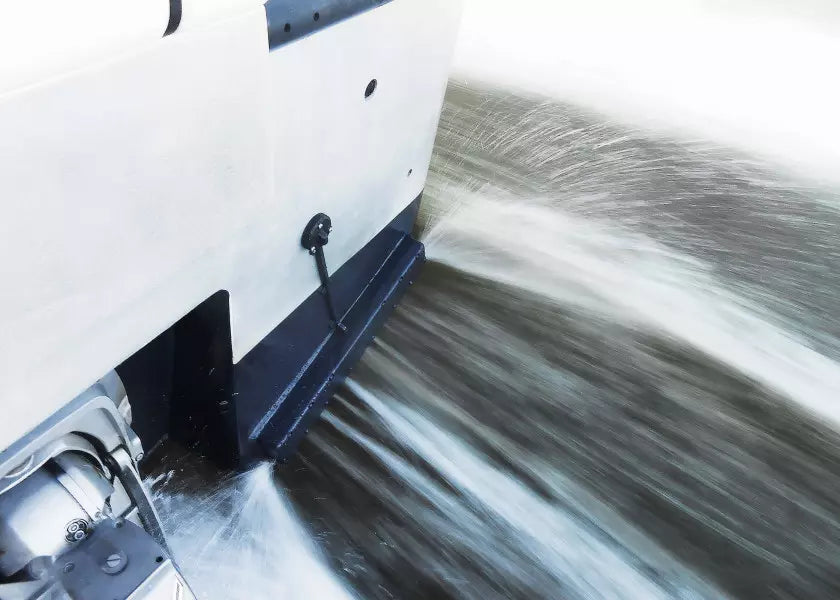

The interceptors are supplied with a 3-meter PUR cable and M12 5-pin connector (14.5 mm diameter), which can be extended up to 6 meters. The system is designed for permanent transom mounting and can be integrated via the IM module into compatible external systems.

Did you know

... that you can see our large exhibition and try out Garmin and Zipwake products on our "Showboat" in our large boat equipment store at Bådebyggervej 1 in Næstved. Furthermore, many of our items can be ordered online and picked up in our self-service stores locally in the Danish harbors.

See more here: Self-service stores

Installation/mounting

Have your Zipwake equipment installed by our skilled specialists - call us at 71 99 77 79 so we can find a solution together.

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Zipwake KBI400-E PRO - Kit Box for integration (400 mm PRO)
Zipwake KBI400-E PRO - Kit Box for integration (400 mm PRO) Item no. 2022270

Description

Produkt: Zipwake KBI400-E PRO - Kit Box 400-E PRO for Integration
Model: 2022270
Længde: 400 mm (15.7 in)
Vægt: 17.1 kg (37.7 lbs)
Indhold: 2x IT400-E PRO interceptors, CP PRO control panel, DU PRO distribution unit, IM integrator module, kabler og tilbehør
Kasse mål: 752 x 192 x 452 mm
Tekniske specs:
- Kabellængde: 3 m (forlænges til 6 m)
- Kabel materiale: PUR
- Connector: M12 5-pin circular, 14.5 mm
- Max bådhastighed: 60 knots
- Driftsspænding: 36 V DC
- Strømforbrug: 35 W max/servo unit
- Driftstemperatur: 0° til +40°C
- Vandtæthed: IP68 5 m (16 ft)
- Certificering: CE, FCC
