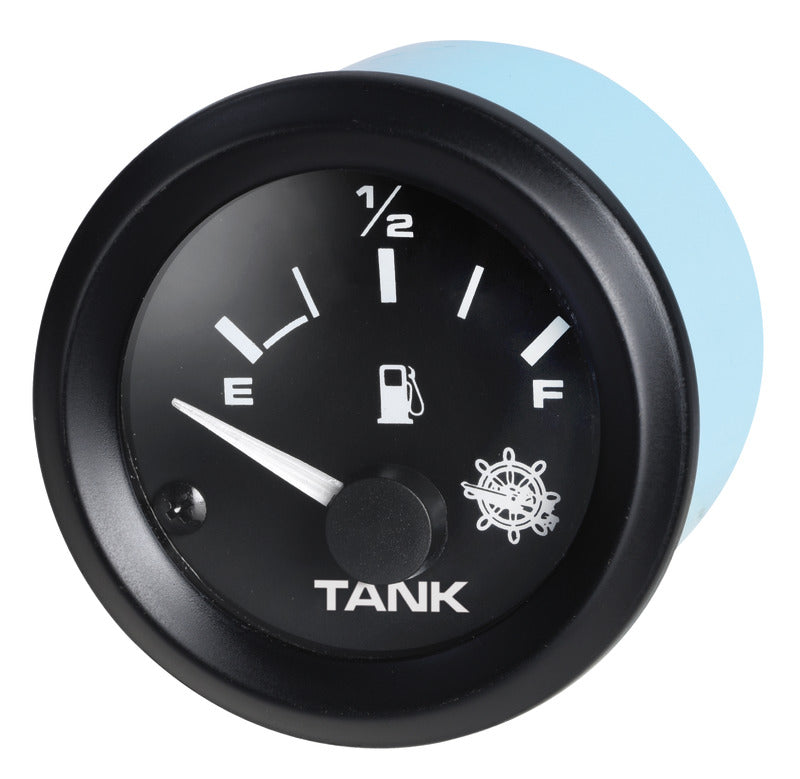

This universal tank level indicator is a separate panel instrument for displaying the liquid level in a tank. The instrument features a TANK marking on the dial and is intended for a level sensor with a sender signal of 240–33 Ω.
The indicator can be used for various types of liquids and is therefore not limited to a specific tank content. It displays the level based on the signal from the connected level sensor, so the sensor's resistance range must correspond to the instrument's 240–33 Ω characteristic.
The instrument is designed for panel mounting with a nominal mounting diameter of Ø 52 mm. It is supplied as the indicator instrument only; a level sensor is not documented as included and must be selected based on tank type, installation dimensions, and electrical connection.
Sensors with item no. 27.160.01 and 27.160.05 have the same documented 240–33 Ω signal. Before installation, it must also be verified that the design, dimensions, and application of the selected sensor are suitable for the specific tank.
Key featuresSeparate panel-mounted tank level indicator
TANK marking on the dial
Sender signal: 240–33 Ω
Mounting diameter: Ø 52 mm
Suitable for displaying levels for various liquid types
Requires a separate level sensor with the correct signal range
Black finish
