Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 20 cm

Mærke: Osculati SKU: 27.170.20

Price:
Sale price209,00 kr

Description

Vertical level sensor in AISI 316 with S3 thread is a float-based tank sender in the S3 series for measuring fluid levels in fuel and water tanks. This variant has a nominal length of 20 cm and a signal range of 240–33 Ω.

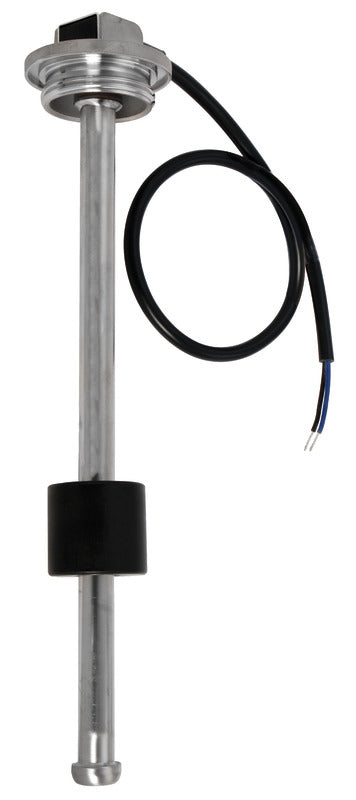

The ring-shaped float moves along the vertical sensor tube, changing the sensor's resistance in accordance with the fluid level. The sensor is compatible with 12/24 V systems and has a power rating of 125 mW as well as a maximum operating current of 300 mA. The electrical connection consists of two leads: black for signal and blue for common.

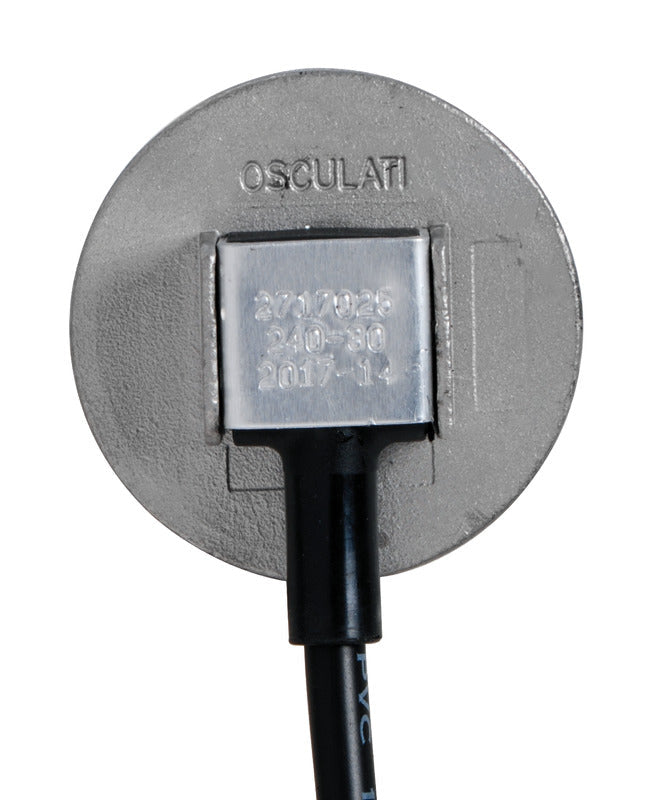

The sensor is manufactured from AISI 316 stainless steel and features an NBR seal. The sensor tube has an outer diameter of 12.7 mm, the float measures Ø35 × 32 mm, and the top has a maximum diameter of 53.5 mm. The enclosure rating is IP65, and the documented operating temperature range is from -40 °C to +85 °C.

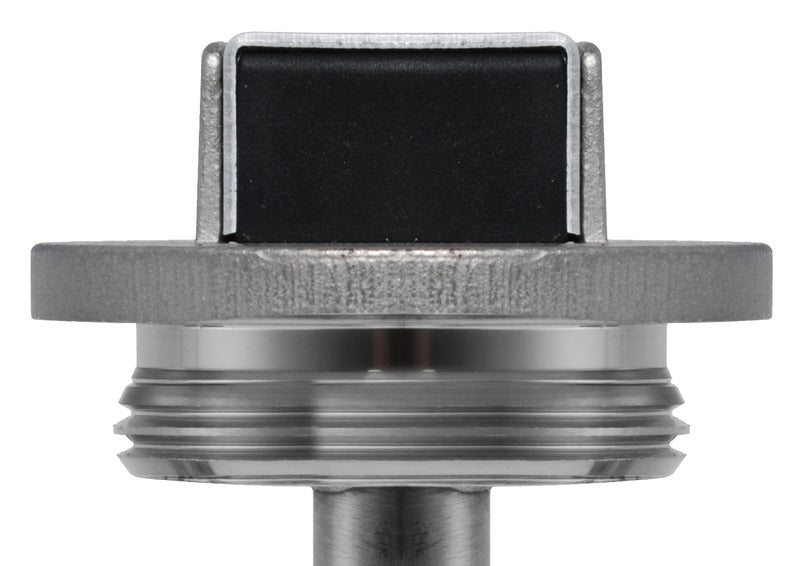

Mounting is performed using the external S3 thread in size BSP 1 1/4". The nominal sensor length is 200 mm with a tolerance of ±5 mm, and the connected cable measures 460 ±20 mm. For installation in a tank with a 5-hole S5 flange, the mounting adapter with item no. 52.746.10 can be used.

The signal range is suitable for compatible 240–33 Ω instruments from, among others, Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom, and Taiwan-Wena. The instrument with item no. 27.160.00 is specifically listed for the series, while the universal TANK indicator 27.170.00 has a matching input range of 240–33 Ω.

The sensor family is covered by standards ABYC H-24, USCG 33 CFR 183.590, and ISO 10088, as well as the EMC Directive 2014/30/EU with the associated EN standards. Functional testing can be performed with an ohmmeter between the black and blue leads while the float is moved between its extreme positions.

Key features

For fuel and water tanks
Signal range: 240–33 Ω
Voltage: 12/24 V
Nominal length: 20 cm
External S3 thread: BSP 1 1/4"
AISI 316 stainless steel with NBR seal
Enclosure rating: IP65
Cable length: 460 ±20 mm
Operating temperature: -40 °C to +85 °C

Did you know?

... that many of our products can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Did you know

... that many of our items can be ordered online and picked up in our self-service stores?

See more here: Self-service stores

Alpina Marineudstyr

Ask us about the product

Send us your question. The product will automatically be included in your message.

Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 20 cm
Vertical level sensor in AISI 316 with S3 thread, 240–33 Ω, 20 cm Item no. 27.170.20

Description

Produkt: Vertikal niveausensor i AISI 316 med S3-gevind
Serie: S3
Produkttype: Vertikal S3-niveausensor
Anvendelse: Niveaumåling i brændstof- og vandtanke
Volt: 12/24 V
Effekt: 125 mW
Maks. arbejdsstrøm: 300 mA
Modstandsområde: 240–33 Ω
Længde: 20 cm
Længdetolerance: ±5 mm
Maks. diameter på top: 53,5 mm
Udvendig diameter: 12,7 mm
Flydermål: Ø35 × 32 mm
Materiale: AISI 316 rustfrit stål
O-ringsmateriale: NBR
IP-klasse: IP65
Temperatur: -40 °C til +85 °C
Gevind: BSP 1 1/4"
Kabellængde: 460 ±20 mm
Elektrisk tilslutning: To ledere
Lederfarver: Sort signal, blå fælles
Modstandstolerance: ±(R × 1,5 % + 1 Ω)
Montering: Udvendigt S3-gevind
Standard: ABYC H-24; USCG 33 CFR 183.590; ISO 10088; EN 61326-1:2013; EN 61000-6:2007; EN 61000-6:2007/A1:2011/AC:2012
Certificering: Overensstemmelse med 2014/30/EU
Kompatibilitet: 240–33 Ω-instrumenter fra Teleflex, Aqua Meter, Vetus, S. Giorgio Sein/Veglia, Beede, Medallion, Datcom og Taiwan-Wena samt instrumenterne 27.160.00 og 27.170.00
Vægt: 225 g
